Get Closer to the ACTION in 4K !
The PROTON 4K ZOOM is designed for productions that demand both precision and flexibility in an ultra-compact form factor.
Combining true 4K resolution with advanced zoom control, it allows operators to frame the action with accuracy, even in the most constrained environments.
Based on the PROTON 4K architecture, it delivers exceptional image fidelity, low latency, and rock-solid performance.
From live sports and broadcast applications to immersive and creative setups, PROTON 4K ZOOM brings uncompromised 4K detail exactly where it matters.
Smallest Broadcast camera with zoom on the market (50x50x73mm), 234 gr
From 55° to 115° ultra wide angle, 2.2x zoom
High 12 bit dynamic 4Kp60
2-stops more on mini cameras
HDR compliant
HLG, PQ and S-log3
High sensitivity Low noise, less light required
Lowest operational voltage 12V-25V
Lowest Power – 7W
Connection:
1.8m coax cable 12G SDI video – BNC plug
1.8m power cable and control (RS485) – Hirose connector
Tally light integrated
Part number : PCI-4K-ZOOM

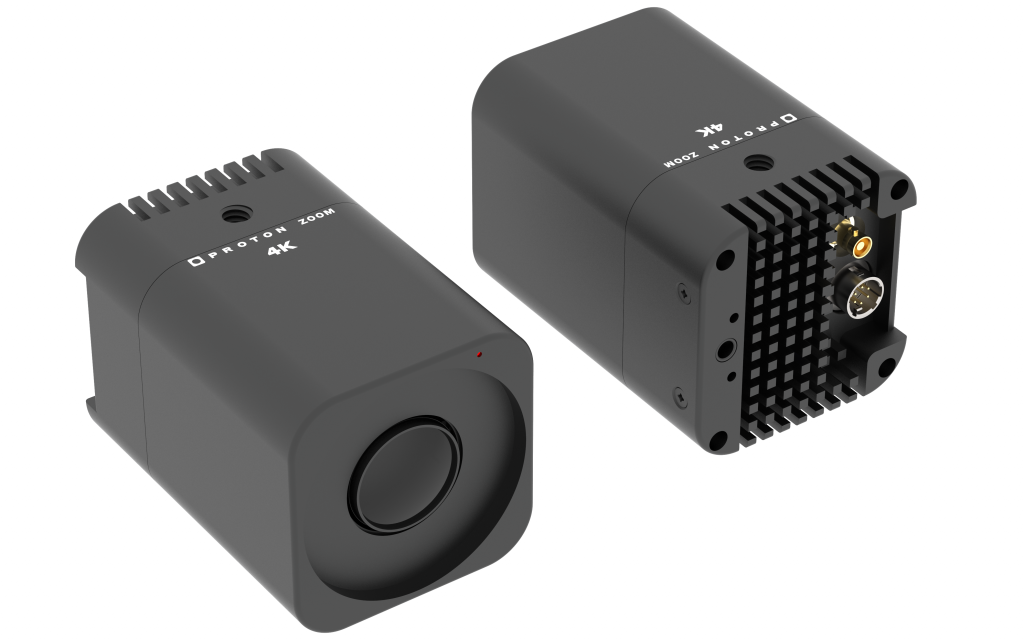

Exact same features than the PROTON 4K ZOOM with cables but with connectors.
Connectors :
- HD-SDI connector (mini SDI)
- Hirose male connector
Part number : PCI-4K- ZOOM-CON
Available cable :
Power cable : 1,8m, – PN : CBL-POWER-02-200
SDI cable : 1,8m, SDI / HD-SDI – PN : CBL-BNC-185-HDBNC-01
More informations can be found here.
