True 4K 3D. Perfectly SYNCHRONIZED!
The PROTON 4K 3D is designed for immersive productions requiring precise stereoscopic capture in a compact and flexible form factor.
Based on the proven PROTON 4K FLEX architecture, it enables the creation of true 3D imagery by combining two perfectly synchronised cameras into a single, streamlined system.
With frame-accurate synchronization, shared control, and a compact design that allows optimal interocular positioning, the PROTON 4K 3D delivers natural depth perception and seamless integration into professional 3D workflows.
Ideal for cinematic production, immersive content, and advanced storytelling, it opens new creative possibilities where size, weight, and precision are critical.

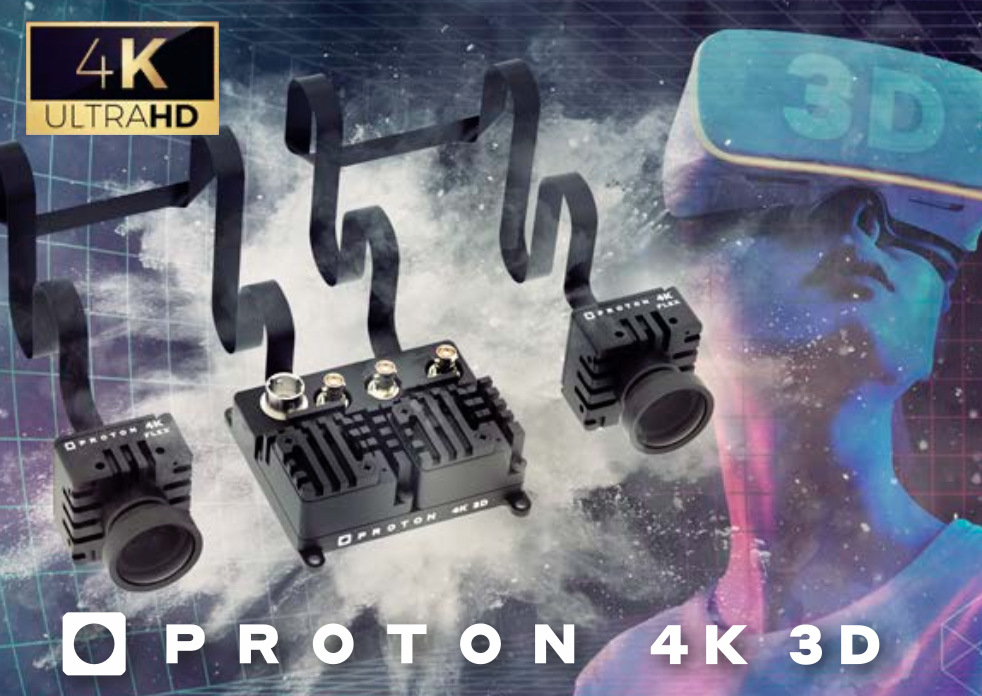

4K stereoscopic broadcast camera system
Dual camera configuration with shared CCU
Flexible Broadcast camera
Head: 2x 28x28x20mm
ECU: 57x54x22mm.
Frame-accurate synchronization
Perfect alignment between both sensors
High 12 bit dynamic 4K
2-stops more on mini cameras
High sensitivity
Low noise, less light required
HDR compliant
HLG, PQ and S-log3
Lowest voltage & Power
12V-25V — 12W
(Heads: 2W + ECU: 10W)
Optimized 3D rig integration
Side-by-side or mirrored configurations
Unified control
Shared power, shading, and exposure adjustment
Connection:
2X 12G – HD-BNC SDI connectors
Power and control (RS485) – Hirose connector
More informations can be found here.
