Maximum Performance, Minimal Size!

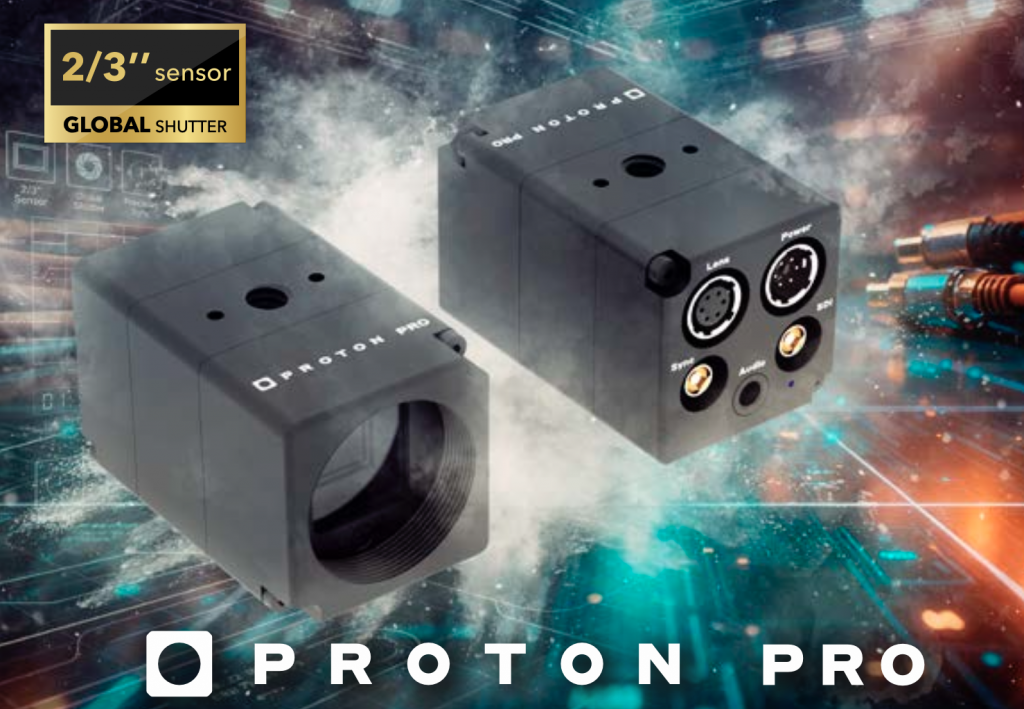

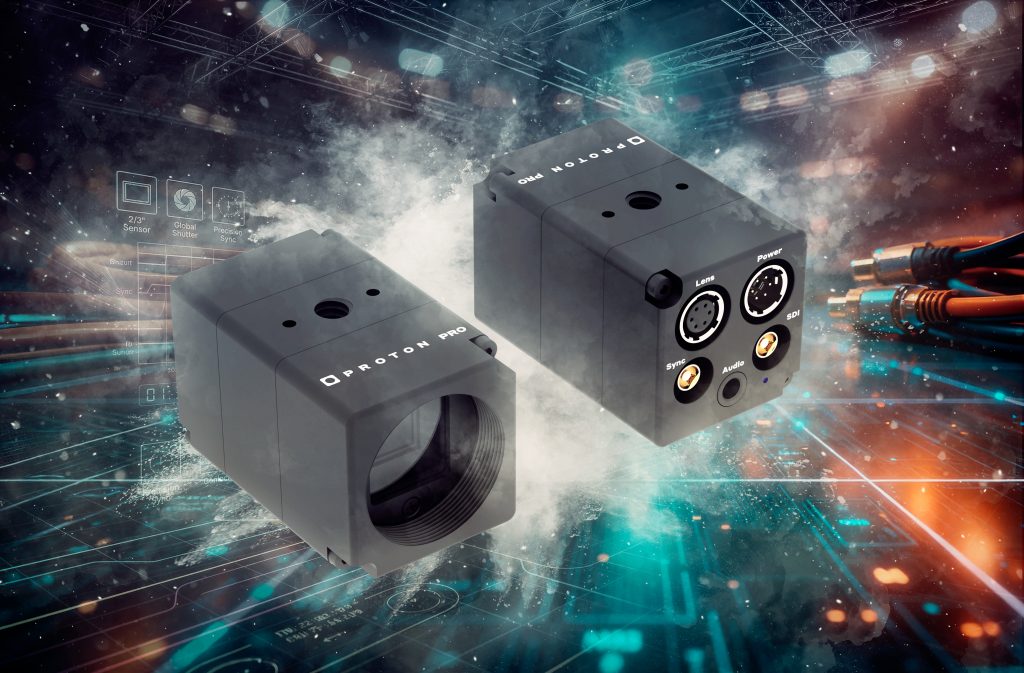

The PROTON PRO is designed for productions that demand the highest level of performance in a compact form factor.
Built on PROTON’s advanced imaging architecture, it features a 2/3’’ global shutter sensor, Genlock support, and has an audio input, ensuring precise synchronization and uncompromised image capture in demanding broadcast environments.
High-performance Broadcast camera (30x30x49mm), 79 gr
2/3’’ global shutter sensor
C or CS mount
High 12 bit dynamic 1080p
HDR compliant
HLG, PQ and S-log3
High sensitivity
Low noise, less light require
Genlock support
Frame-accurate synchronization
Audio input
Optimised power consumption
4.5V–25V — 3.5W
Connection:
3G SDI video – on HD-BNC connector
Power cable and control (RS485) – Hirose connector
Integrated lens control
Part number : PCI-PRO
More informations can be found here.
